For more than a year, we have been expecting for Amazon Web Services to launch its Graviton4 processor for its homegrown servers at this year’s re:Invent, and lo and behold, chief executive officer Adam Selipsky rolled out the fourth generation in the Graviton CPU lineup – and the fifth iteration including last year’s overclocked Graviton3E processor aimed at HPC workloads – during his thrombosis-inducing keynote at the conference.

Selipsky did not do the obligatory hold up of the Graviton4 chip during the keynote, which is odd. But the press release did include a chip shot, which is shown in the feature image above.

As we also expected, the Graviton4 is also based on Arm Ltd’s “Demeter” Neoverse V2 core, which is based on the Armv9 architecture as is Nvidia’s “Grace” CG100 CPU. (Officially, Nvidia has not given Grace a product name consistent with its GPU naming scheme, so we are doing it there. The C is for CPU and the G is for Grace.) We did a deep dive on the Demeter V2 core back in September when the “Genesis” Compute Subsystem announcement was made by Arm, and the V2 core has an improvement of 13 percent in instructions per clock compared to the “Zeus” V1 core that preceded it and that was used in the Graviton3 and Graviton3E processors already deployed by AWS.

This is not a big jump in IPC, obviously, and hence the core counts are jumping and that is why we are also assuming that AWS has moved from the 5 nanometer processes from foundry partner Taiwan Semiconductor Manufacturing Co used to etch the Graviton3 and Graviton3E chips to a denser and somewhat mature 4 nanometer process from the world’s favorite foundry. This same 4N process is used to make Nvidia’s Grace CPU as well as its “Hopper” GH100 GPUs – both of which are taking the generative AI world by storm.

The Graviton4 package has 96 of the V2 cores on it, which is a 50 percent boost over the Graviton3 and Graviton3E, and the Graviton4 has twelve DDR5 controllers on it compared to the eight DDR5 memory controllers, and the speed of the DDR5 memory used with the Graviton4 was boosted by 16.7 percent to 5.6 GHz. So the math across all of that, and the Graviton4 has 536.7 GB/sec of memory bandwidth per socket, which is 75 percent higher than the 307.2 GB/sec offered by the prior Graviton3 and Graviton3E processors.

In the presentation by Selipsky as well as in the limited specs that AWS has put out about the Graviton4, the company says that generic Web applications run 30 percent faster on Graviton4 than on Graviton3 (not Graviton3E, which was overclocked and hot), but that databases would run up to 40 percent faster and that large Java applications would run 45 percent faster. Now, that could mean that AWS has implemented simultaneous multithreading (SMT) in the V2 cores, providing two threads per core, like X86 processors from Intel and AMD do and that some Arm chips have done in the past.

We don’t think so, and our comparative salient characteristics table below says there are 96 threads and not 192 threads per socket. We think it is 96 threads per socket and that the doubling of the L2 cache per core to 2 MB has had a dramatic effect on the performance of Java and database applications. You can get 3X the vCPUs by adding two-way SMT, but that would not give you 3X the memory. It would still only be 1.5X the memory compared to a Graviton3 chip.

Something else that AWS said in its blog about the new R8g instances that use the Graviton4 chip also gave us pause: “R8g instances offer larger instance sizes with up to 3X more vCPUs and 3X more memory than current generation R7g instances.”

With 96 cores and a dozen memory controllers – both boosted by 1.5X from the Graviton3 – you would only expect the R8g to have 1.5X as many vCPUs and only 1.5X more memory capacity than the R7g instances using the Graviton3 chip. And so, we think this is the first two-socket implementation of the Graviton family. That is also one reason why we think that the Graviton4 chip has around 95 billion to 100 billion transistors rather than the 82.5 billion you would expect if AWS just added 50 percent more cores to the Graviton3 design and left it at that. The doubling of the L2 cache, the addition of four more DDR5 memory controllers, and a pair of I/O controllers that also now do line-rate encryption also added to the transistor budget, we think.

We think that the Graviton4 is noteworthy in another way. In the past, Neoverse blocks were done in 32 core or 64 core blocks and Arm suggested using chiplets with UCI-Express or CCIX interconnects to build larger processor complexes. Companies making their own Arm CPU designs could always implement a monolithic die, which you would do for latency and power reasons – those interconnects are not free – btu a monolithic die, especially one with 96 cores, would have a disproportionately lower yield than a 32 core or 64 core block. And that has a cost, too.

So we think, looking at the chip shot above, that the Graviton4 is a two-chiplet package, with one chiplet rotated 180 degrees from the other. That is probably why the memory controller chiplets on the left and right of the central core complex on the package are offset from each other.

Here is how we think the Graviton4 stacks up to the prior generations of chips:

Admittedly guessing, we think that the Graviton4 has a little less performance than the Graviton3E, but burns nearly half the power to get there and has memory capacity that is 50 percent higher and bandwidth that is 75 percent higher within what is probably around a 130 watt power envelope with a much lower – and much more desirable – 2.7 GHz clock speed.

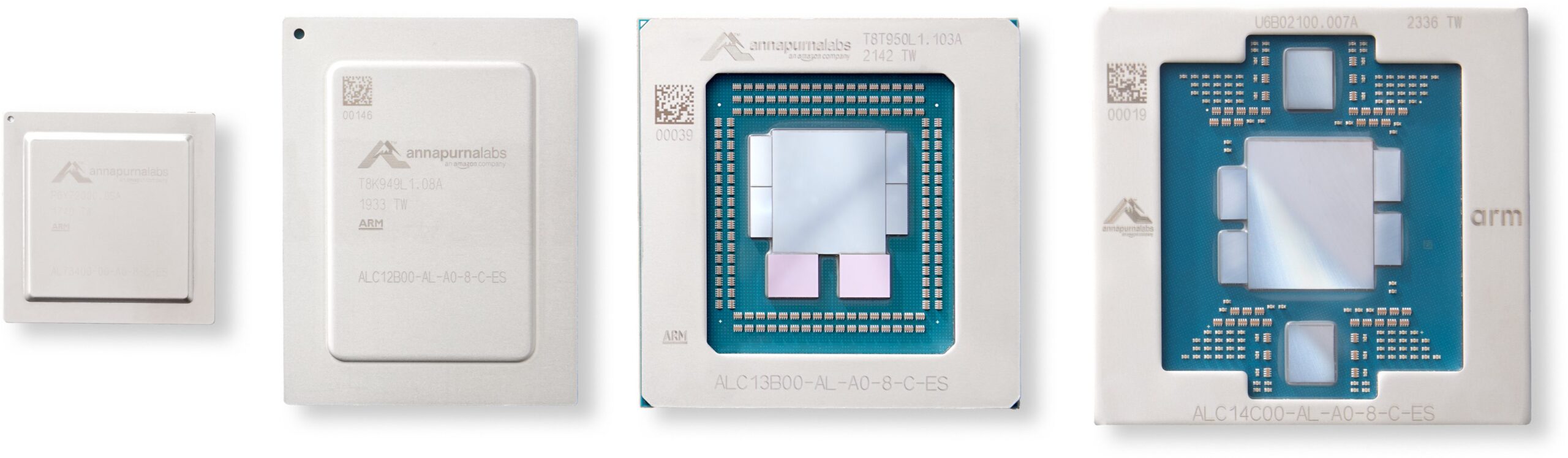

Here is what those chips look like, compliments of Andy Jassy, Amazon chief executive officer, who posted it on Twitter:

 With these numbers as we have estimated them, shown in bold red italics as usual, the Graviton4 chip has about the same performance per watt as measured in ECU performance units as the Graviton3, which is about all you can hope for with a modest process shrink and a lot more cores.

We will update this story as more details emerge.

One more thing: AWS said in its announcement (but Selipsky did not brag in his keynote) that it has deployed over 2 million of Graviton processors in its fleet to date and has over 50,000 customers that have used them.

That is a very respectable number of CPUs, and if AWS had not started doing Graviton in-house, those chips would have all come instead from Intel, AMD, or maybe even Ampere Computing. But they didn’t. Which is why pinning your business plans to the hyperscalers and cloud builders is a risky proposition.
